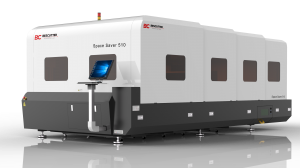

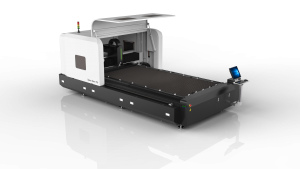

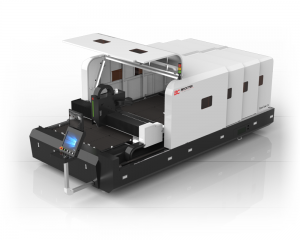

Main Features IPG Laser Resonator Compact design with safety enclosure. Ideal for shop with limited space. Full enclosure with retractable housing. Easy loading and unloading. Space Saving: no exchange table. High rigidity enhanced aviation aluminum gantry. Rack and pinion structure, servo drive, secondary annealing treatment of high rigid welding frame with high accuracy and stability. ___________________________________________________________________________________________________ Technology Specifications Working Area: 60″ x 120 ” (1525 mm x 3050 mm) Laser Wattage: 1500 W / 2000 W/ 3000 W/ 4000 W Continuous Wave fiber laser, 1.07 um wavelength Beam Quality: <0.373 mrad IPG Laser Generator Laser Head: RayTools (auto focus) Control System: CypCut BCS 100 Cooling System: CWFL-1500, CWFL-2000, CWFL-3000, CWFL-4000 or Comparable Driving System: Servo Motors XYZ Servo Motors: Schneider Y 2x1500W, X 1x1000W, Z 1x400W Max Speed: 60m/min Power Supply: Three phase 208V/ 240V / 480V (transformer included) Overall Size: 233″L X 106″W x 90″H Weight: 7716 lbs Format: LXD, DXF, PLT, AI, NC etc. High Quality Rack and Pinion Guide Rails SKU: N/A Categories: Bescutter, Bescutter Fiber Lasers, Bescutter Fiber Lasers - Sheet Metal
Tech Specs
- Type: Wired
- Open/Closed: Closed
- Fit Style: Circumaural (Around the Ear)
- Noise Attenuation: Passive Noise Isolating
- Frequency Response:8Hz-25kHz
- Impedance:64 ohms
- Connectivity:1/8", 1/4" adapter
- Cable Type: Coiled
- Cable Length:9.8'
- Features: Swivel Earcups
- Foldable: Yes
- Color: Black
- Weight:0.49 lbs.
- Manufacturer Part Number:506845
