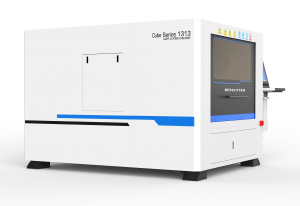

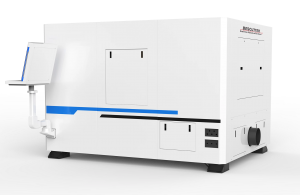

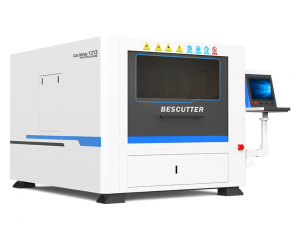

Main Features Unparalleled versatility for cutting various metals, including low carbon steels, stainless steels, galvanized sheets, as well as some high reflective metals, such as aluminum Long Durability (Cast Aluminum Beam, High-Temperature Annealing Solid Machine Bed) IPG Laser Generator Fully Protected Enclosure Slide Out Table for easy load/unload Technology Specifications Working Area: 51″ x 51 ” (1300 mm x 1300 mm) Z-axis Travel: 4.7″ (120 mm) Continuous Wave fiber laser, 1.07 um wavelength Laser Wattage: 1000 W/ 1500 W/ 2000 W/ 3000 W Beam Quality: <0.373 mrad Positioning Accuracy: <= 0.05 mm/m Max. no load speed: 2362 inch/min (60m/min) Machine Power Supply: Three Phase 208V, 240V or 480V Power consumption: 10-30 kW (various by laser wattage) Dedicated USA technical support from qualified technicians and engineers Gross weight: 5,500 lbs Air-Assist: Oxygen or Nitrogen Driving System: Servo Motors XYZ Servo Motors: Schneider or Delta, Y 2x850W, X 1x750W, Z 1x400W Full List of Specifications (PDF) CUTTING CAPABILITIES SKU: N/A Categories: Bescutter, Bescutter Fiber Lasers, Bescutter Fiber Lasers - Sheet Metal
Tech Specs
- Type: Wired
- Open/Closed: Closed
- Fit Style: Circumaural (Around the Ear)
- Noise Attenuation: Passive Noise Isolating
- Frequency Response:8Hz-25kHz
- Impedance:64 ohms
- Connectivity:1/8", 1/4" adapter
- Cable Type: Coiled
- Cable Length:9.8'
- Features: Swivel Earcups
- Foldable: Yes
- Color: Black
- Weight:0.49 lbs.
- Manufacturer Part Number:506845
