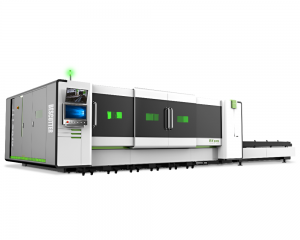

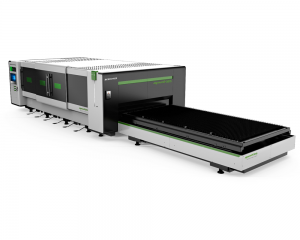

BesCutter Mach Speed 6-15KW 5’x10′ IPG Fiber Laser Cutter Fully Enclosed with Hydraulic Shuttle Table

ASK PRICE for 8KW/ 10KW/ 12KW/ 15KW MACHINE INTRODUCTION Germany brand of major components IPG laser resonator  PRECITEC laser cutting head Beckhoff CNC controlling system Direct drive system with high torque servo motor Auto energy-saving mode Auto exchanging table with hydraulic lifting system  Eagle eye technology (optional) MACHINE VIDEO TECHNICAL PARAMETER Standard working area 61″ x 120″ (3050 x 1550 mm) Optional working area 157″ x 78.7″/ 236″ x 98.4″/ 315″ x 98.4″ X, Y, Z  axis distance 61″ (3050 mm)/120″ (1550 mm)/3.93″ (100 mm) X, Y Two-axis coordinated positioning speed (MAX) 240 m/min Positioning acceleration (MAX) 2.4 G Positioning accuracy ±0.05 mm/m Re-positioning accuracy ±0.02 mm Maximum load weight 890 kg Laser resonator IPG  (Germany Brand) Laser head PRECITEC (Germany Brand) Controlling System Beckhoff (Germany Brand) X-Y-Z Servo Motors X-2x9700W;  Y- 1x6880W ;  Z-1x940W Machine Weight 28200 lbs (12800 kg) Dimensions 350″x 118″ x 87″ (8900 x 3000 x 2200 mm) _________________________________________________________________ MACHINE FEATURES IPG laser resonator (3 years warranty) IPG-YLS Specification YLS-6000 Laser mode CW,QCW Wavelength 1070-1080nm Standard output laser power 6000W Laser beam quality ≤4mm*mrad Modulation speed 5kHz Delivery fiber core diameter ≥50μｍ Output stability ±2% Power supply 400-460V/3P PE@50-60Hz   PRECITEC Laser Head                                                       Beckhoff controlling system Dual CoreTM i3 CPU 3.1GHz RAM： 4G Hard disk： 1TB 21.5″ touch screen USB, network and DVI interface, etc.   High-rigidity welded body, compact design, and stable performance Auto exchanging shuttle table with hydraulic lifting system High torque direct drive servo motor – Alpha (powerful driving, high accuracy cutting, and excellent dynamic response) High-pressure servo-control valve  (switch the type of cutting gas automatically, and  accurate control the gas pressure without user intervention) Nesting software  (CutLeader laser cutting auto-nesting software) Special molding technique made aviation aluminum gantry All-aluminum cast beam Lightweight, strong rigidity Fast response, high precision, and good stability HIGH POWER CUTTING CAPABILITIES SKU: N/A Categories: Bescutter, Bescutter Fiber Lasers, Bescutter Fiber Lasers - Sheet Metal
