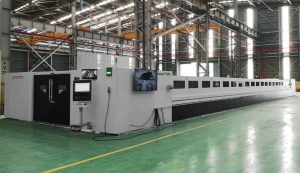

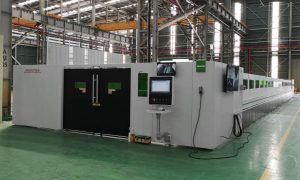

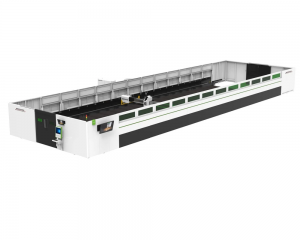

BesCutter Giga Series 12KW 10’X40′ IPG Fiber Laser Cutter

MACHINE INTRODUCTION Rail-typed typed splicing machine tool design, connect the front and rail side together precisely. IPG laser resonator  PRECITEC laser cutting head Cold drawn extruded aluminum gantry: Lightweight, great rigidity, high dynamic and precise, robust structure, less deformation. Beckhoff CNC servo control system Servo control assisted gas: Reduce gas consumption during the movement without cutting to save cost. Dual servo motor driving system: Imported high precision rack & pinion system. Standard working area 12m x 3m. Optional working area: 25m x 4m. _________________________________________________________________ Standard working area 12m x 3m Optional working area 25m x 4m X, Y, Z  axis distance X, Y Two-axis coordinated positioning speed (MAX) 200 m/min Positioning acceleration (MAX) 2.0 G Positioning accuracy ±0.05 mm/m Re-positioning accuracy ±0.02 mm Maximum load weight 890 kg Laser resonator IPG  (Germany Brand) Laser head PRECITEC (Germany Brand) Controlling System Beckhoff (Germany Brand) X-Y-Z Servo Motors X-2x4780W;  Y- 1x3500W ;  Z-1x940W Machine Weight Dimensions _________________________________________________________________ MAIN FEATURES IPG laser resonator (3 years warranty) PRECITEC Laser Head                                                                                                            Beckhoff controlling system Dual CoreTM i3 CPU 3.1GHz RAM： 4G Hard disk： 1TB 21.5″ touch screen USB, network and DVI interface, etc.   High-rigidity welded body, compact design and stable performance.  High precision servo motor (big transmission torque and good dynamics) High-pressure servo-control valve   (switch the type of cutting gas automatically, and  accurate control the gas pressure without user intervention)    Nesting software  (Cut-Leader laser cutting auto-nesting software) Special molding technique made aviation aluminum gantry All-aluminum cast beam Lightweight, strong rigidity Fast response, high precision, and good stability SKU: N/A Categories: Bescutter, Bescutter Fiber Lasers, Bescutter Fiber Lasers - Sheet Metal
