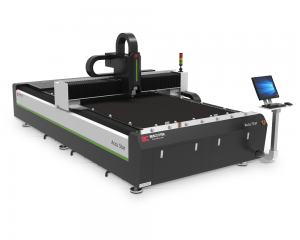

Accu Star 5’x10′ Fiber Laser Sheet Metal Cutting Machine 1000-2000W IPG

Main Features IPG Laser Resonator. High Rigidity Enhanced Aviation Aluminum Gantry. Rack and pinion structure, servo drive, secondary annealing treatment of high rigid welding frame with high accuracy and stability. Professional laser cutting software with graphic layout and sharp corner smoothing functions, fast piercing & cutting. Space Saving: no exchange table. Technology Specifications Working Area: 5′ x 10′ (1,525 mm x 3,050 mm) Optional Working Area: 5’ x 20’ (1,525 x 6,100 mm)  Z-axis Travel 4.7″ (120mm) Laser Resonator: IPG 1000 W/ IPG 1500 W / IPG 2000 W Continuous Wave fiber laser, 1.07 um wavelength Beam Quality: <0.373 mrad Laser Head: RayTools (Auto Focus) Control System: CypCut BCS 100 Cooling System: TeYu CWFL1000, CWFL-1500, CWFL-2000 or Comparable Driving System: Servo Motors XYZ Servo Motors: Schneider or Delta Y 2x1500W, X 1x1000W, Z 1x400W High-Quality Rack and Pinion Guide Rails   SKU: N/A Categories: Bescutter, Bescutter Fiber Lasers, Bescutter Fiber Lasers - Metal Pipe, Bescutter Fiber Lasers - Sheet Metal
