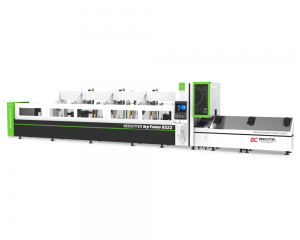

BesCutter HyTube 1-4KW IPG Fiber Laser Tube Cutting Machine with Auto Tube Loading

Optional Diameter: 160mm 6.3″ | 220mm 8.6″ | 320mm 12.6′ | 400mm 15.7″ | 500mm 19.7″ MACHINE VIDEO   PRODUCT INTRODUCTION Cut a variety of tubes, such as a round tube, square tube, triangle tube, rectangular tube, oval tube, and waist round tube. IPG laser resonator  Germany PRECITEC cutting head: high precision with auto-focus. FASTCUT CNC system: Integrates professional tube cutting platform, powerful but simple for operation, with user-friendly HMI. Special designed flexible tube support device: Keep the device grip the tube tightly during the tube feeding and rotating. Automatically loading by whole package tube: Reduce staff number and improve the processing efficiency. Tube type auto-recognition system: Different types tubes can be mixed loading together. High precision & high-pressure servo-control valve: Precisely control the cutting gas and pneumatic chuck. Linear positioning speed 100 m/min; rotation positioning speed 120 m/min.  ________________________________________________________________ TECHNICAL SPECIFICATION Tube range (length) 244″ (6200 mm) Tube diameter Standard: 0.78″- 8.66″ (20- 220 mm) Optional: 0.78″- 12.60″ (20- 320 mm) X-axis 246″ (6250 mm) Y-axis 7.87″ (200 mm) A, B-axis Infinite Rotation Z-axis 6.30″ (160 mm) X, Y-axis positioning accuracy ±0.03 mm/1000 mm X, Y-axis re-positioning accuracy ±0.05 mm A, B-axis positioning accuracy ±30″ A, B-axis re-positioning accuracy ±10″ X, Y-axis max positioning speed 100 m/min Max positioning speed 100 rpm Laser resonator IPG 2 KW  (Germany Brand) Optional laser wattage IPG 1 KW/ 1.5 KW/ 3 KW/ 4 KW (Ask for price) Laser head PRECITEC (Germany Brand) Machine Weight 16534 lbs (7500 kg) Dimensions (L x W x H) 472″x 169″ x 110″ (12000 x 4300 x 2800 mm) _________________________________________________________________ CUTTING CAPABILITIES SKU: N/A Categories: Bescutter, Bescutter Fiber Lasers, Bescutter Fiber Lasers - Metal Pipe
