BesCutter HyRobot 1.5KW 3D Robot IPG Fiber Laser Metal Cutting Machine

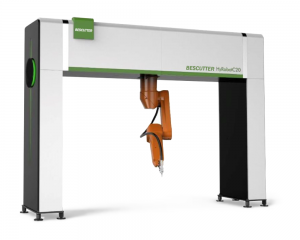

PRODUCT INTRODUCTION Adopts gantry structure, flying optical path design, the laser head move around while the product is fixed.  High precision industrial robot, equipped with a mature robot control system: high accuracy, stability, and reliability. IPG 1.5 KW laser resonator (YLR-1500-K) US Lasermech 3D laser head: compact design, stable dynamic follow-up system, good cutting ability.   – Robot installation basement: There is a collision induction device that connects to the laser cutting head and robot. – Fiber collimating beam expander (cutting, welding): 125 mm standard focal length. – Driving system: It helps the cutting nozzle to move to follow the product surface.  – Fixed parts-nozzle: Block the dust and scrap. Safety protection housing, using safety interlocking design. _________________________________________________________________ MACHINE VIDEO INDUSTRIAL ROBOT TECHNICAL PARAMETER  Industrial robot brand Staubli Robot model RX160L Working area 59″ x 78.74″ (1500 x 2000 mm) Max load 61.5 lbs (28 kg) Rated load 30.5 lbs (14 kg) Re-positioning accuracy ±0.05 mm Wingspan 2010 mm Axis-1 ±160˚ Axis-2 147.5˚/-130˚ Axis-3 ±145˚ Axis-4 ±270˚ Axis-5 140˚/-115˚ Axis-6 ±360˚ Laser Resonator IPG 1.5 KW  (Germany Brand) Laser head US LaserMech 3D laser head Machine Weight 555.57 lbs (252 kg) _________________________________________________________________ Categories: Bescutter, Bescutter Fiber Lasers, Bescutter Fiber Lasers - Metal Pipe, Bescutter Fiber Lasers - Sheet Metal
