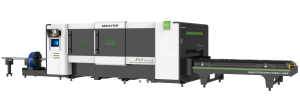

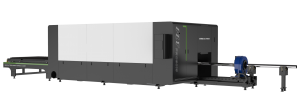

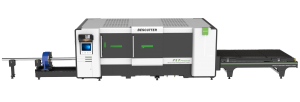

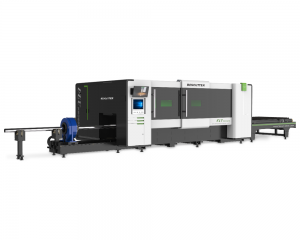

BesCutter Fly Pro 1.5-6KW IPG Fiber Laser Metal Sheet and Pipe Cutter Full Enclosure with Parallel Shuttle Table

PRODUCT INTRODUCTION Available for Both Metal Sheet & Tube Cutting Tube Cutting Rotary Device: Support basic round and square tube cutting, standard tube diameter 0.78″-8.66″ Laser Source: IPG Machine Body: High-rigidity welded body, compact design, and stable performance Gantry: Special molding technique made aviation aluminum gantry, lightweight, strong rigidity, fast response, and stable running. Transmission System: High torque imported servo drive system and perfect laser welder gear system. Ensure powerful driving, high accuracy cutting, and excellent dynamic response. Z-axis System: High precision ball screw system. Laser Cutting Head: Raytools auto-focusing laser cutting head. Auto Exchanging Shuttle Tables: Parallel auto exchanging shuttle table, ensure synchronous running, good efficiency, reliability, and stability. Control System: CypCut ___________________________________________________________________________________________ MACHINE VIDEO  TECHNICAL PARAMETER Standard working area 10′ x 5′ (3050 x 1550 mm) Optional working area 13′ x 6.5′ (4000 x 2000 mm)/ 20′ x 6.5′ (6100 x 2050 mm)/ 26′ x 6.5′ (8000 x 2000 mm) Optional Laser Wattage 1500W/ 2000W/ 3000W/ 4000W/ 6000W X- axis distance 120″ (3050 mm) Y- axis distance 61″ (1550 mm) Tube X1- axis distance 59″ (1500 mm) Tube A, B axis- distance Infinite rotation Tube diameter Standard: 0.78″-8.66″ (20-220 mm) Z-axis distance 11.8″ (300 mm) X, Y Two-axis coordinated positioning speed (MAX) 140 m/min Positioning acceleration (MAX) 1.5 G Positioning accuracy ±0.05 mm/m Re-positioning accuracy ±0.02 mm Maximum sheet load weight  lbs (700 kg) Maximum pipe load weight Auto-loading: 220 lbs (100 kg) Manual-loading: 440 lbs (200 kg) Laser resonator IPG Laser head Raytools: 1.5 -4 KW Precitec: 6 KW Controlling System Cypcut X-Y-Z Servo Motors X-2x2900W;  Y- 1x850W ;  Z-1x750W Machine body weight Approximately  15,432 lbs (7000 kg) Pipe rotation weight Approximately 2204 lbs (1000 kg) Exchanging shuttle tables & auxiliary weight Approximately 5511 lbs (2500 kg) Dimension No pipe cutting 350″ x 118″ x 80″ (8900 x 3000 x 2050 mm) With pipe cutting 429″ x 142″ x 80″ (10900 x 3600 x 2050 mm)   CUTTING CAPABILITIES SKU: N/A Categories: Bescutter, Bescutter Fiber Lasers, Bescutter Fiber Lasers - Metal Pipe, Bescutter Fiber Lasers - Sheet Metal
