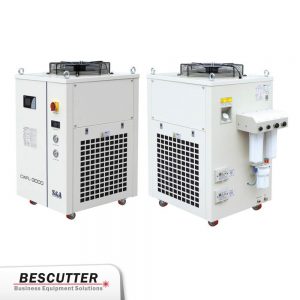

Industrial Refrigerated Water Chiller CWFL-3000 For Fiber Laser 3000W

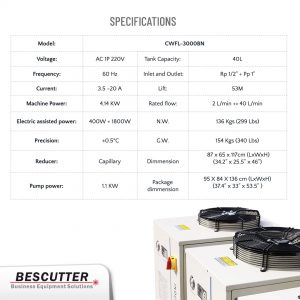

MAIN FEATURES With environmental refrigerant; ±5℃ precisely temperature control; The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions Dual temperature to satisfy different needs of the fiber laser device and the optics; With Ion adsorption filtrating and test, functions conform to fiber laser device operating requirements Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm, and over high / low-temperature alarm; Multiple power specifications; CE approval; RoHS approval; REACH approval; Optional heater and water filter. Support Modbus-485 communication protocol, which can realize the communication between the laser system and multiple water chillers to achieve two functions: monitoring the working status of the chillers and modifying the parameters of the chillers. Model: CWFL-3000BN Voltage: AC 1P 220V Tank Capacity: 40L Frequency: 60 Hz  Inlet and Outlet: Rp 1/2″ Pp 1″ Current: 3.5 ~20 A Lift: 53M Machine Power: 4.14 KW Rated flow: 2 L/min > 40 L/min Electric assisted power: 400W 1800W N.W. 136 Kgs (299 Lbs) Precision:  ±0.5°C G.W. 154 Kgs (340 Lbs) Reducer: Capillary Dimensions 87 x 65 x 117cm (LxWxH) (34.2” x 25.5” x 46”) Pump power: 1.1 KW Package dimmension 95 X 84 X 136 cm (LxWxH) (37.4” x 33” x 53.5” ) Categories: Bescutter, Fiber Laser Accessories
