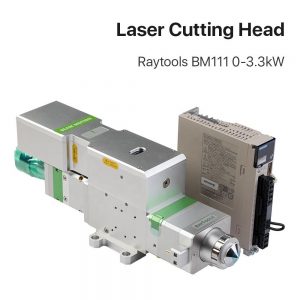

RayTools BM111 Series Auto-Focusing Laser Head for 3.3KW Fiber Laser Cutting Machine

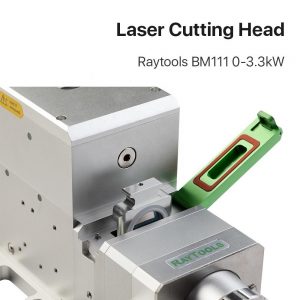

Short Description: Product Detail BM111 series are autofocusing cutting head, which are released by Switzerland RAYTOOLS AG in 2017. The product has a built-in motor drive unit through the linear driver and the focusing lens can automatically change the position in the range of 22mm. The user can set the focus continuously through the program to complete the rapid per piercing of thick sheets or other different thickness and material sheets. The product can be equipped with a D30 lens group to integrate the light beam. The optimization of optical design and the design of water-cooled allows laser heads stably and chronically to work at high-power lasers. Features Optimized optical configuration and smooth and efficient airflow design. Auto focus ranges 9~-14mm, accuracy is 0.05mm. Can be equipped with the D30 lens group, the maximum fiber input power is 3.3KW. Maximum acceleration of focus lens drive 10m/s2, maximum speed 10m/min. Adds an upper protective lens to the collimator, minimizing the risk of contamination of the collimator. Drawer-type of the lens mount, quick and easy access to the cover glass. With a variety of optical interfaces, can be adapted with a variety of fiber lasers. Specifications   Power Rating ≤3.3KW Clear Aperture 28mm Collimator Focal length 100mm Focusing Focal length 125mm/155mm/200mm Collimating protective glass φ24.9mm*1.5mm Focus protective glass φ27.9mm*4.1mm Auto focus range 10～-12mm Assist gas Pressure ≤30bar Weight ～6.5kg Categories: Bescutter, Fiber Laser Accessories
